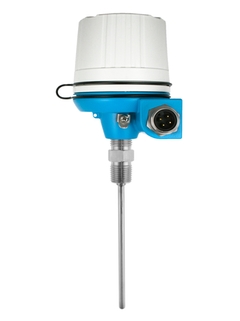

Product picture Pt100 thermometer TH11 US style

TH11
Modular RTD thermometer, US style

Best in class temperature measurement technology for general applications

TH11
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Product picture Pt100 thermometer TH11 US style
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    class A acc. to IEC 60751
    class B acc. to IEC 60751

  • Response time

    63% rt = 2,0 s

  • Max. process pressure (static)

    at 20°C: 250 bar (3.626 psi)
    depends on configuration

  • Operating temperature range

    PT 100:
    -200 °C ...600 °C
    (-328 °F ...1.112 °F)

  • Max. immersion length on request

    up to 96" (2439 mm)
    others on request

Field of application

The high modular thermometer is used for several applications in almost all industries. Examples are heat exchangers, dryers, process reactors , reactor stations, etc. With different head transmitter it's a complete unit ready for use with enhanced measurement accuracy and reliability. It also enables very fast response times, due to direct contact measurement without thermowell. A variety of process connections and dimensions offer flexible application possibilities.

The TH11 temperature sensors are RTD's designed for use in the process industry or factory automation type of environment. They are made up of a measurement probe with a RTD, insulation and sheath.

Among other applications the sensors can be used on:

  • Heat exchangers

  • Power & recovery areas

  • Carbon regeneration furnaces

  • Dryers

  • Flue Gas

  • Compressor stations

  • Process reactors

Benefits

  • High flexibility due to modular assembly with standard terminal heads and customized immersion length

  • One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications. Remove and install straight out of the box!

  • Improved galvanic isolation on most devices (2 kV)

  • Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor and transmitter assembly for a complete point solution.

  • All iTEMP® transmitters provide long term stability ≤ 0.05 % per year

  • Fast response time with reduced/tapered tip form

  • Head or field transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™

Extended selection

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

FLEX: Extended ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
