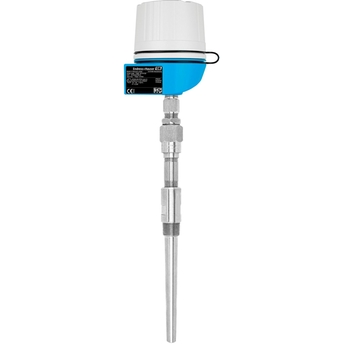

Product picture thermocouple thermometer TC66

TC66
Explosion-proof TC Thermometer

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

TC66
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

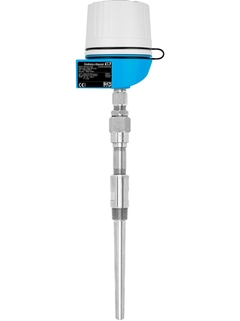

Product picture thermocouple thermometer TC66 threaded
  • F
  • L
  • E
  • X
©Endress+Hauser

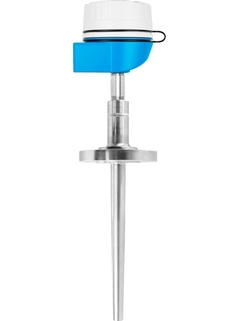

Product picture thermocouple thermometer TC66 with flange
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    class 1 acc. to IEC 60584

  • Response time

    depending on configuration
    t50 = 3 s
    t90 = 7 s

  • Max. process pressure (static)

    at 20 °C: 500 bar (7.252 psi)

  • Operating temperature range

    Type K:
    max. 1.100 °C
    (max. 2.012 °F)
    Type J:
    max. 800 °C
    (max. 1.472 °F)

  • Max. immersion length on request

    up to 5.000,00 mm (196,85'')

Field of application

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust protection tubes and special materials. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors.

  • Heavy duty applications

  • Oil & Gas processing industry

  • Measuring range: –40 to 1 100 °C (–40 to 2 012 °F)

  • Static pressure range up to 100 bar (1450 psi)

  • Protection class: IP68

Benefits

  • Types of protection for use in hazardous locations: Intrinsic safety (Ex i.a.), flameproof (Ex d), non-sparking (Ex nA)

  • High degree of insert compatibility and design as per DIN 43772

  • Extension neck to protect the head transmitter from overheating

  • High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
